Name: DIN ANSI Cast Iron CI Globe Valve PN 16 125LB-150LB
Brand: Chizhou Fuchang Machinery Manufacturing Co.,Ltd
SKU: DIN/ANSI
Price: 100 USD
Availability: InStock

DIN ANSI Cast Iron CI Globe Valve PN 16 125LB-150LB

Basic Information

Place of Origin:	China
Brand Name:	OEM
Certification:	CE/ISO
Model Number:	DIN/ANSI

Minimum Order Quantity:	1pc
Price:	USD 0-100
Packaging Details:	plywood case
Delivery Time:	30 days
Payment Terms:	T/T
Supply Ability:	400 thousands pcs per year

Get Best Price Contact Now

Detail Information

Material:	Cast Iron/Ductile Iron	PN:	PN10-PN16/125LB-150LB
DN:	DN50-DN300/2''-12''	Working Temperature:	-20℃-120℃
Suitable Medium:	Water/Steam/Oil/Gas	Standard:	DIN/ANSI
Highlight:	PN16 ci globe valve , 125LB ci globe valve , DIN globe valve pn 16

Product Description

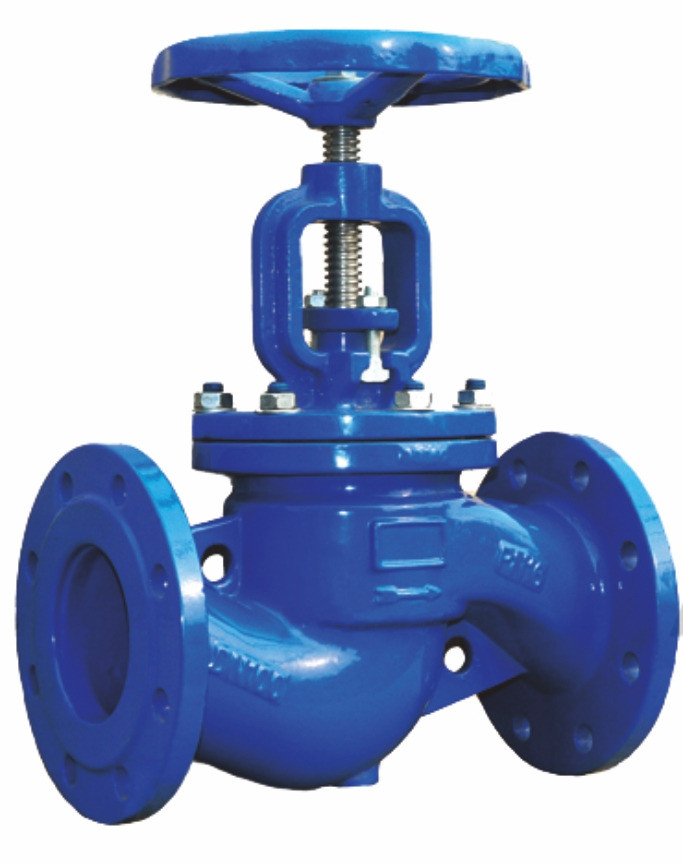

DIN/ANSI Cast Iron Globe Valve

Description:

DIN/ANSI cast iron globe valve, with GGG40/GGG50 body, and brass/bronze/stainless steel sealing surface, manufactured for use in water, waste water, sewage, steam,oil and gas, being coated with epoxy power, the coated is make sure bigger than 250μm. Our globe valves all guarantee 100% testing before packing and delivery.

Main parts materials:

· Body: GGG40/GGG50/A126/A536

· Bonnet: GGG40/GGG50/A126/A536

· Disc: GGG40/GGG50 with Brass/Bronze/Stainless Steel

. Stem: 2Cr13/SS304/SS316/Brass

· Seat: Brass/Bronze/Stainless Steel

Specifications:

Nominal Pressure	Design Standard	Face to Face	Flange Standard
PN10 PN16 125LB 150LB	DIN3356 MSS SP-70	DIN3202-F1 ANSI B16.10	DIN2532 ANSI B16.1 ANSI B16.5

Body

Bonnet

Disc

Seat

Stem

Temp.

Medium

GGG40

GGG50

A126

A536

GGG40

GGG50

A126

A536

GGG40/GGG50 with Brass/Bronze/ Stainless Steel

Brass

Bronze Stainless Steel

2Cr13

SS304

SS316

Brass

-20℃-120℃

Water

Steam

Oil Gas
