| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | CE/ISO |
| Model Number: | DIN/BS/ANSI/JIS |
| Minimum Order Quantity: | 1pc |
| Price: | USD 0-100 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 400 thousands pcs per year |
| Material: | Ductile Iron/Cast Iron | PN: | PN10/PN16/125lb/150lb/5K/10K |
|---|---|---|---|
| DN: | DN50-DN300/2''-12'' | Working Temperature: | -20℃-120℃ |
| Suitable Medium: | Water/Steam/Oil/Gas | Standard: | DIN/BS/ANSI/JIS |
| Highlight: | BS4504 Y Strainer Valve,ANSI Y Strainer Valve,BS4504 y strainers for water |
||

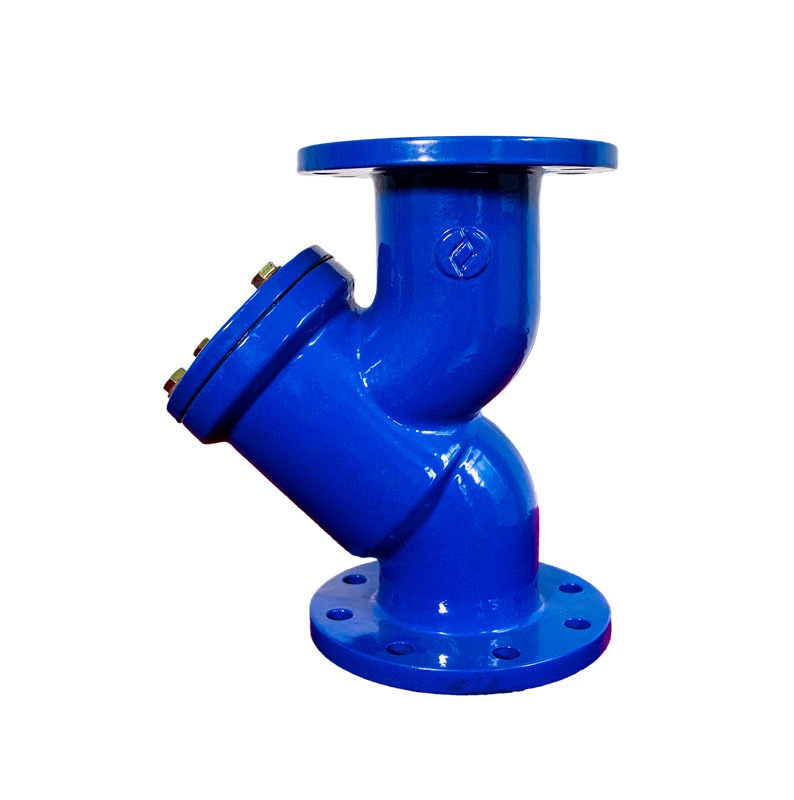

DIN3202-F1/BS4504/ANSI/JIS Y Strainer
Description:
DIN3202-F1/BS4504/ANSI/JIS cast iron Y Strainer, with GGG40 or GGG50 body, and SS304/SS316 screen, manufactured for use in water, waste water, sewage, steam and oil, being coated with epoxy power, the coated is make sure bigger than 250μm. Cast iron Y strainer all guarantee with zero leakage ( Class A), all valves are 100% testing before packing and delivery.
Main parts materials:
· Body: GGG40/GGG50/A536/FCD400/FCD500
· Bonnet: GGG40/GGG50/A536/FCD400/FCD500
· Screen: SS304/SS316
Specifications:
| Nominal Pressure | Design Standard | Face to Face | Flange Standard |
|
PN10 PN16 125LB 150LB 5K 10K |
DIN3356 BS4504 ANSI JIS B2043 |
DIN3202-F1 BS4504 ANSI B16.10 JIS B2002 |
DIN2532 DIN2533 BS4504 ANSI B16.1 NPT JIS B2212 |
| Body | Bonnet | Screen | Temp. | Medium |
|
GGG40 GGG50 A536 FCD400 FCD500 |
GGG40 GGG50 A536 FCD400 FCD500 |
SS304 SS316 |
-20℃--120℃ |
Water Steam Oil Gas |
Y Strainer wait to deliver:
