| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | ISO/CE |
| Model Number: | BS/ANSI/GB |
| Minimum Order Quantity: | 1 |
| Price: | USD1-100 |
| Packaging Details: | with plywood cases |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 400 thousands pcs per year |
| Working Temperature: | -20℃-120℃ | Operation: | With Handwheel/with Cap/with Gearbox/For Electric Actuator |
|---|---|---|---|
| Application: | Water/Steam/Oil | Body Material: | GGG40/GGG50 |
| Size: | DN50-DN800/2''-32'' | Pressure Rating: | PN10/PN16/125lb-150lb |
| Type: | Non-rising Stem/Rising Stem | Seat Leakage: | Class A |
| Highlight: | BS5163 gate valve 300mm,CI gate valve 300mm,DN800 gate valve ci |
||

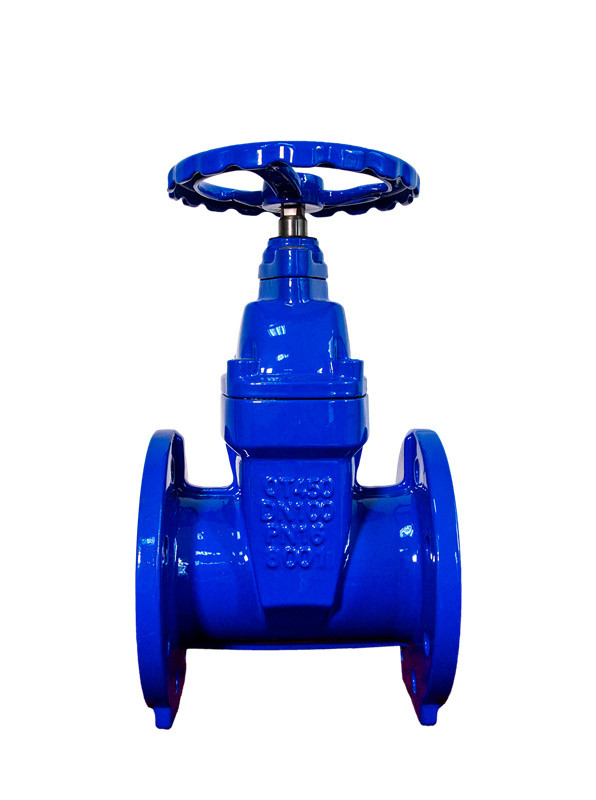

Soft Seat Gate Valve is a reliable and high-performance cast iron ci gate valve designed for a wide range of applications including water, steam and oil. It is available in sizes from DN50 to DN800 or 2” to 32”, with pressure ratings ranging from PN10 to PN16 or 125lb to 150lb. Its soft seat ensures tight shutoff when the valve is in a fully closed position, and the valve is designed to work in a temperature range of -20℃ to 120℃. Furthermore, Soft Seat Gate Valve is offered with a variety of operating types from handwheel, cap, gearbox to electric actuator for selection. It is the ideal choice for those who need an economical yet dependable gast cast iron soft seat gate valve.
| Parameter | Value |
|---|---|
| Application | Water/Steam/Oil |
| Operation | With Handwheel/with Cap/with Gearbox/For Electric Actuator |
| Valve Type | Soft Seat Gate Valve |
| Body Material | GGG40/GGG50 |
| Seat Leakage | Class A |
| Pressure Rating | PN10/PN16/125lb-150lb |
| Size | DN50-DN800/2''-32'' |
| Type | Non-rising Stem/Rising Stem |
| Working temperature | -20℃-120℃ |
| Design Standard | DIN/BS5163/ANSI/GB |
| Special Note | Ductile iron valves, cast iron gate valve, cast iron valves |
Soft Seat Gate Valve is a brand-name product made by OEM, and it has a model number BS/ANSI/GB. It has a certification of ISO/CE, and the minimum order quantity is 1. The price range for this product is USD1-100, and it is packaged with plywood cases. Delivery time is 30 days and payment terms are T/T. OEM can supply up to 400,000 pieces per year. This cast iron gate valve, non-rising gate valve, wedge gate valve can be operated with a handwheel, cap, gearbox, or electric actuator. The pressure rating is PN10/PN16/125lb-150lb and it can be used for water, steam, and oil. It has a seat leakage of class A and can be used in temperatures ranging from -20℃ to 120℃.
We provide technical support and services for our Soft Seat Gate Valve products. Our team of highly-trained professionals are available to help you with any technical issues you may have. We offer a variety of services, including:
Our team is committed to providing you with the best technical support and services in the industry. We are dedicated to helping you get the most out of your Soft Seat Gate Valve products. If you have any questions or need help with your product, please contact us.
