| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | CE/ISO |
| Model Number: | DIN3202-F6/BS5153/ANSI/JIS |
| Minimum Order Quantity: | 1pc |
| Price: | USD 0-100 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 400 thousands pcs per year |
| Material: | Ductile Iron/Cast Iron | PN: | PN10-PN16/125LB-150LB/5K-10K |
|---|---|---|---|
| DN: | DN50-DN300/2''-12'' | Working Temperature: | -20℃-120℃ |
| Suitable Medium: | Water/Steam/Oil | Standard: | DIN3202-F6/BS5153/ANSI/JIS |
| Type: | With Counter Weight | Name: | Swing Check Valve |
| Highlight: | BS5153 Cast Iron Check valve,Counterweight Cast Iron Check valve,JIS 50mm swing check valve |
||

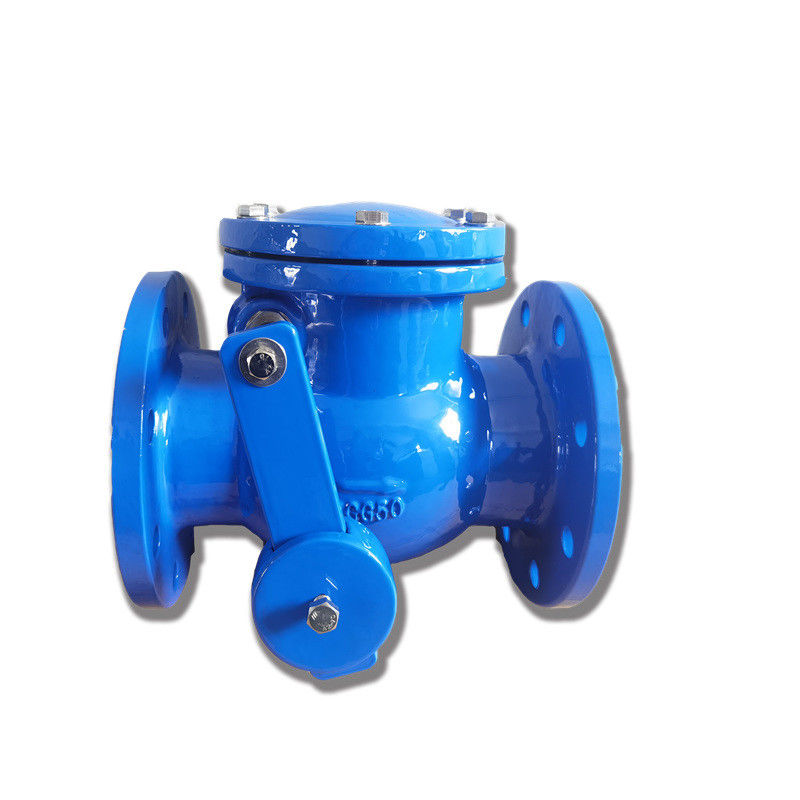

DIN3202-F6/BS5153/ANSI/JIS Cast Iron Swing Check Valve With Counter Weight
Description:
DIN3202-F6/BS5153/ANSI/JIS cast iron swing check valve with counter weight, counter weight swing check valve with cast iron body, and Brass/Bronze/Stainless steel sealing surface, manufactured for use in water, waste water, sewage, steam,oil and gas, being coated with epoxy power, the coated is make sure bigger than 250μm. The swing check valves all guarantee 100% testing before packing and delivery.
Main parts materials:
· Body: GGG40/GGG50/A536/FCD400/FCD500
· Bonnet: GGG40/GGG50/A536/FCD400/FCD500
· Disc: GGG40/GGG50 with Brass/Bronze/Stainless steel
. Seat: Brass/Bronze/Stainless steel
· Pin: 2Cr13/SS304
Specifications:
|
Nominal Pressure |
Design Standard |
Face to Face |
Flange Standard |
|
PN10 PN16 125LB 150LB 5K 10K |
DIN3356 BS5153 ANSI BS1868 JIS B2043 |
DIN3202-F6 BS5153 ANSI B16.10 JIS B2002 |
DIN2532 BS4504 ANSI B16.1 JIS B2212 |
|
Body |
Bonnet |
Disc |
Seat |
Pin |
Temp. |
Medium |
|
GGG40 GGG50 A536 FCD400 FCD500 |
GGG40 GGG50 A536 FCD400 FCD500 |
GGG40/GGG50+ Brass/Bronze/ Stainless Steel |
Brass Bronze Stainless Steel |
2Cr13 SS304 |
-20℃-120℃ |
Water Steam Oil |
Valves wait for deliver
