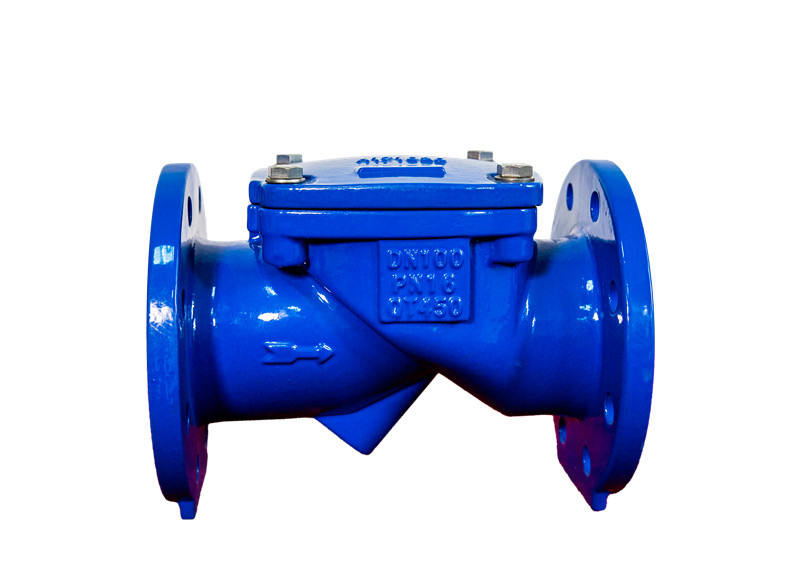

Rubber Seat Silent Check Valve Cast Iron 45 DEG For Sewage

Basic Information

Place of Origin:	China
Brand Name:	OEM
Certification:	CE/ISO
Model Number:	DIN3202-F6/BS5153/ANSI/JIS

Minimum Order Quantity:	1pc
Price:	USD 0-100
Packaging Details:	plywood case
Delivery Time:	30 days
Payment Terms:	T/T
Supply Ability:	400 thousands pcs per year

Get Best Price Contact Now

Detail Information

Material:	Ductile Iron/Cast Iron	PN:	PN10-PN16/125LB-150LB/5K-10K
DN:	DN50-DN300/2''-12''	Working Temperature:	-20℃-120℃
Suitable Medium:	Water/Steam/Oil	Standard:	DIN3202-F6/BS5153/ANSI/JIS
Sealing:	Rubber Seat	Type:	45 DEG Rubber Seat
Highlight:	Sewage silent check valve , 40 DEG silent check valve , 40 DEG check valve cast iron

Product Description

Cast Iron Rubber Seat Check Valve

Description:

Cast iron 45 deg rubber seat check valve, with cast iron body, with carbon steel and rubber disc, manufactured for use in water, waste water, sewage, steam,oil and gas, being coated with epoxy power, the coated is make sure bigger than 250μm. The swing check valves all guarantee 100% testing before packing and delivery.

Main parts materials:

· Body: GGG40/GGG50/A536/FCD400/FCD500

· Bonnet: GGG40/GGG50/A536/FCD400/FCD500

· Disc: Carbon steel with rubber

· Pin: 2Cr13/SS304

Specifications:

Nominal Pressure	Design Standard	Face to Face	Flange Standard
PN10 PN16 125LB 150LB 5K 10K	DIN3356 BS5153 ANSI BS1868 JIS B2043	DIN3202-F6 BS5153 ANSI B16.10 JIS B2002	DIN2532 BS4504 ANSI B16.1 JIS B2212

Body

Bonnet

Disc

Temp.

Medium

GGG40

GGG50

A536

FCD400

FCD500

GGG40

GGG50

A536

FCD400

FCD500

Carbon steel with rubber

2Cr13 SS304

-20℃-120℃

Water

Steam

Oil
