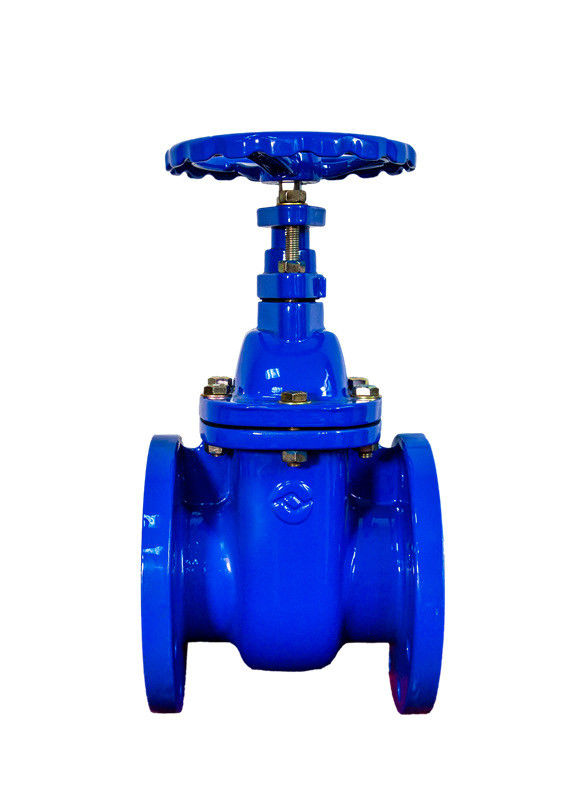

Cast Iron Water Pump Gate Valve BS5163 Gear Operated

BS5163 Cast Iron Non-Rising Stem Metal Seat Gate Valve

Description:

BS5163 cast iron non-rising stem metal seat gate valve, with GGG40 or GGG50 body, and Brass/Bronze/Stainless steel sealing surface, manufactured for use in water, waste water, sewage, steam,oil and gas, being coated with epoxy power, the coated is make sure bigger than 250μm. The BS5163 metal seat gate valve is completely free and full bore self-cleaning and low-pressure loss. The BS5163 metal seat gate valves all guarantee 100% testing before packing and delivery.


          Main parts materials:


· Body: GGG40/GGG50

· Bonnet: GGG40/GGG50

· Stem: 2Cr13/SS304/SS316/Brass

· Disc: GGG40/GGG50 with Brass/Bronze/Stainless steel

. Seat: Brass/Bronze/Stainless steel

· Stem nut: Brass

Specifications:

         Valves wait for deliver
