Product Description:

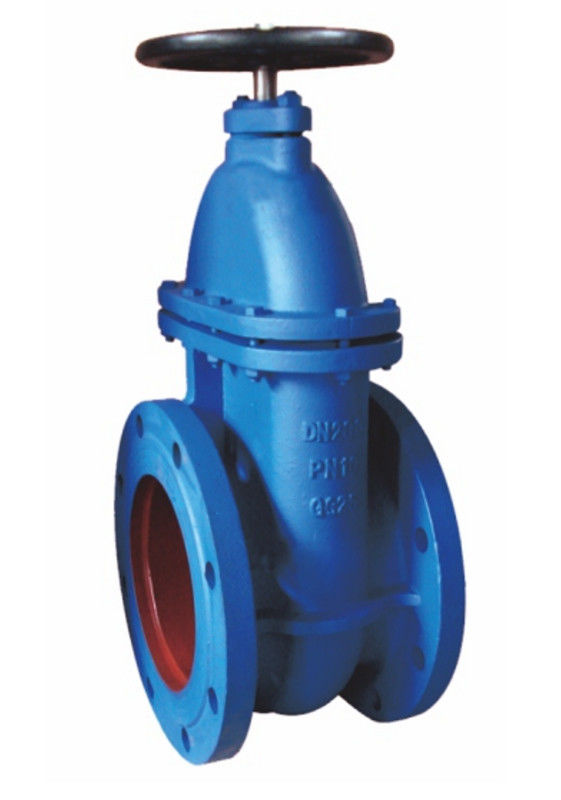

Metal Seat Gate Valve is a kind of cast iron valves, featuring metal sealing gate valve. It is widely used for water, steam, oil, gas and other applications. It is designed for flange connection, meeting the requirements of ISO 9001 and CE. The valve pressure range is from PN10-PN16, and from 125-150LB. It is a reliable metal sealing gate valve, providing superior performance and durability.
Features:
- Product Name: Metal Seat Gate Valve
- Valve Type: Metal Seat Gate Valve
- Valve Size: DN50-DN300, 2-12 Inch
- Valve End Connection: Flange
- Stem Type: Rising Stem, Non-risng Stem
- Valve Body Material: Cast Iron/ductile Iron
- Keywords: ci gate valve, ci gate valve, gate valve handwheel, metal seat gate valve
Technical Parameters:
| Parameter |
Specification |
| Valve Certification |
ISO 9001, CE |
| Valve Operation Temperature |
-20℃-120℃ |
| Valve Pressure |
PN10-PN16, 125-150LB |
| Valve Seat Material |
Metal Seat, Hard Seat |
| Valve End Connection |
Flange |
| Valve Body Material |
Cast Iron/ductile Iron |
| Valve Design Standard |
BS5163, DIN3352, API, JIS |
| Stem Type |
Rising Stem, Non-risng Stem |
| Valve Type |
Metal Seat Gate Valve |
| Valve Application |
Water,Steam,Oil,Gas, Etc. |
Applications:
Metal Seat Gate Valve is a type of hard sealing valve, which is mainly used for sealing off or regulating the flow of water, steam, oil and gas. It features with reliable sealing performance and long service life. It is made of premium ductile iron and has a metal seat. The brand name is OEM and model number is BS/DIN/ANSI/JIS. It is certified by ISO/CE and has a minimum order quantity of 1. The price range is USD1-100 and it is packed with plywood cases. The delivery time is usually 30 days and payment terms are T/T. The supply ability is 400 thousands pcs per year and the valve operation medium is water, oil and gas. This Metal Seat Gate Valve is applicable to water, steam, oil and gas, and widely used in the industrial pipeline system.
Customization:
Metal Seat Gate Valve Customization Services
We offer customized services for metal seat gate valve. Our products are manufactured with brand name OEM, model number BS/DIN/ANSI/JIS, with certification ISO/CE and the minimum order quantity is 1. The price of our products range from USD1-100, and they come with plywood cases. The delivery time is 30 days, and we accept T/T as payment. We have a supply ability of 400 thousands pcs per year. The valve body material is cast iron or ductile iron, and the valve operation medium is water, oil, gas. The pressure range is PN10-PN16, 125-150LB, and the application is for water, steam, oil, gas, etc. The valve size range is DN50-DN300, 2-12 inch.
We are a reliable metal sealing gate valve supplier in China. We offer high quality and cost-effective gate valve products.
Support and Services:
Our technical support and service for Metal Seat Gate Valve are as follows:
- Provide professional installation guidance and product use instructions.
- Provide technical consultation and repair services.
- Provide spare parts supply and replacement services.
- Provide maintenance and regular inspection services.
Packing and Shipping:
Metal Seat Gate Valve Packaging and Shipping:
- The metal seat gate valves are individually wrapped in appropriate protective materials.
- The valves are then placed in heavy-duty cardboard boxes.
- The boxes are then sealed with strong adhesive tape.
- The boxes are then labeled according to the customer's specific requirements.
- The boxes are then loaded into suitable shipping containers.
- The containers are then sent to the customer's destination via a reliable shipping method.
