| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Certification: | CE/ISO |
| Model Number: | JIS |
| Minimum Order Quantity: | 1pc |
| Price: | USD 0-100 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 400 thousands pcs per year |
| Material: | Ductile Iron | PN: | 5K-10K |
|---|---|---|---|
| DN: | 2''-12'' | Operation: | With Handwheel/gearbox/electric Actuator |
| Working Temperature: | -20℃-120℃ | Suitable Medium: | Water/Steam/Oil |
| Standard: | JIS | Type: | Non-rising Stem |
| Highlight: | OEM dn65 gate valve,JIS dn65 gate valve,OEM valve gate wedge |
||

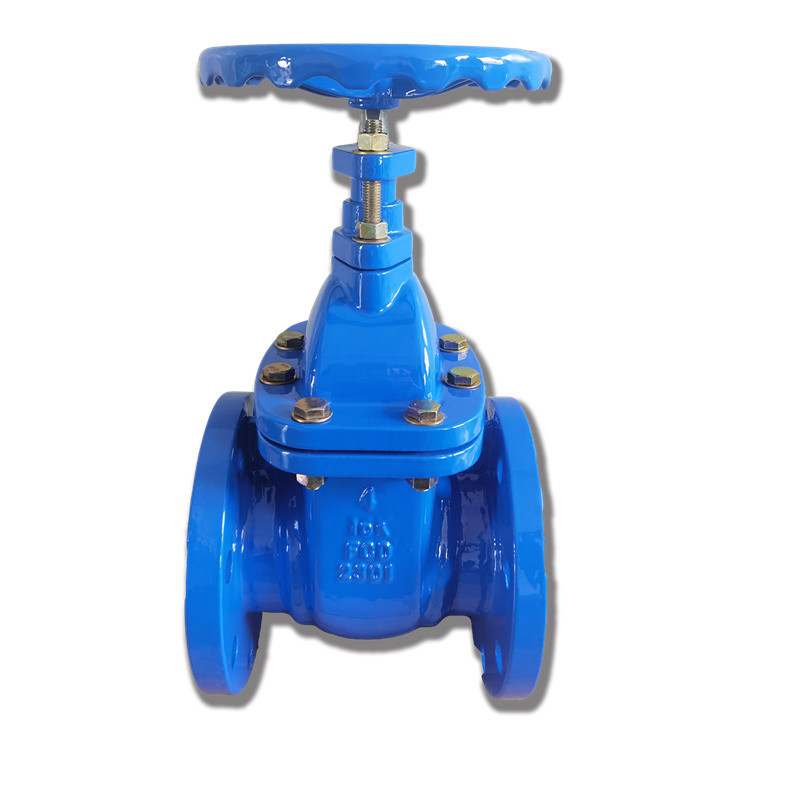

JIS Ductile Iron Non-rising Stem Metal Seat Gate Valve
Main parts materials:
· Body: FCD400/FCD500
· Bonnet: FCD400/FCD500
· Stem: 2Cr13/SS304/SS316/Brass
· Disc: FCD400/FCD500 with Brass/Bronze/Stainless steel
. Seat: Brass/Bronze/Stainless steel
· Stem nut: Brass
Description:
JIS Ductile iron non-rising stem gate valve, with FCD400 or FCD500 body, and Brass/Bronze/Stainless steel sealing surface, manufactured for use in water, waste water, sewage, steam,oil and gas, being coated with epoxy power, the coated is make sure bigger than 250μm. The gate valves all guarantee 100% testing before packing and delivery.
Specifications:
|
Nominal Pressure |
Design Standard |
Face to Face |
Flange Standard |
|
5K 10K |
JIS B2043 |
JIS B2002 |
JIS B2212 |
|
Body |
Bonnet |
Stem |
Seat |
Nut |
Temp. |
Medium |
|
FCD400 FCD500 |
FCD400 FCD500 |
2Cr13 SS304 SS316 Brass |
Brass Bronze Stainless Steel |
Brass |
-20℃-120℃ |
Water Steam Oil Gas
|
