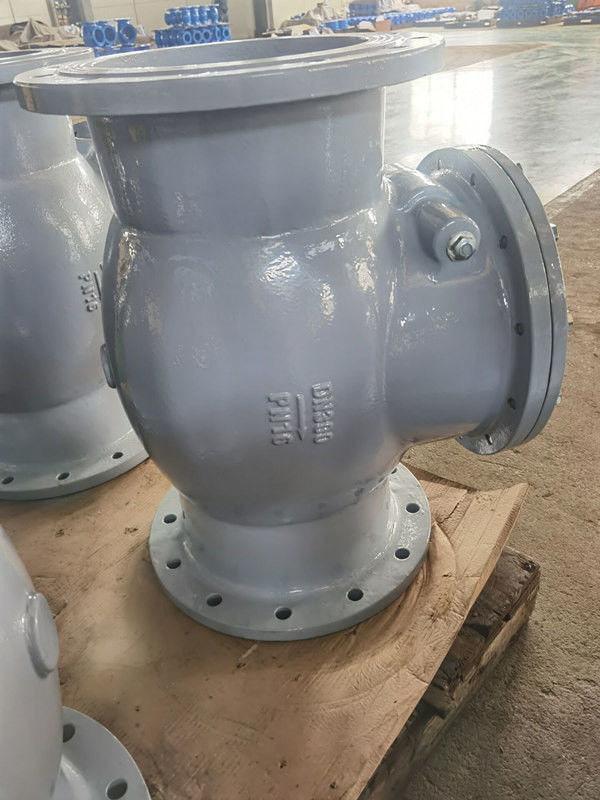

Product Description:
Cast Iron Check valve is a type of swing check valve, which is designed to stop the backflow of liquid and gas within a system. It is made of cast iron material, features a counter weight, and the face to face dimension can be DIN3302-F6/BS5153/ANSI B16.10/JIS B2002. In addition, the end connection can be EN1092/BS4504/ANSI B16.5/ JIS B2212, and the temperature range is -20℃-120℃. This cast iron check valve is highly reliable and efficient, and is widely used in many industries.
Features:
- Product Name: Cast Iron Check valve
- Material: Cast Iron
- End Connection: EN1092/BS4504/ANSI B16.5/ JIS B2212
- Face to face: DIN3302-F6/BS5153/ANSI B16.10/JIS B2002
- Application: Water/Steam/Oil/Gas
- Design Standard: DIN3356/ BS5153/ BS1868/ ANSI/ JIS B2043
- Types: Check valve with counterweight, swing type check valve, di swing check valve
Technical Parameters:
| Parameter |
Value |
| Size |
DN50-DN300/2''-12'' |
| Valve Type |
Swing Check Valve with Counter Weight |
| Application |
Water/Steam/Oil/Gas |
| Pressure Rating |
PN10-PN16/ 125lb-150lb/ 5K-10K |
| Sealing |
Metal Seat / Soft Seat |
| Material |
Cast Iron |
| Design Standard |
DIN3356/ BS5153/ BS1868/ ANSI/ JIS B2043 |
| End Connection |
EN1092/BS4504/ANSI B16.5/ JIS B2212 |
| Temperature Range |
-20℃-120℃ |
| Face to face |
DIN3302-F6/BS5153/ANSI B16.10/JIS B2002 |
Applications:
OEM Brand Cast Iron Check Valve has been widely used in many industries. It is designed with a counterweight that allows it to swing freely and prevent backflow. It is a high-quality, reliable and durable valve that is certified with ISO/CE and has been developed to meet the standards of DIN3302-F6/BS5153/ANSI B16.10/JIS B2002. It is suitable for media like water, steam, oil and gas with a temperature range of -20℃-120℃.
This cast iron check valve has a minimum order quantity of one and the price range is from USD1-100. It is delivered in a plywood case and the delivery time is within 30 days. We accept payment terms of T/T and our supply ability reaches up to 400 thousands pieces per year. The valve type is a swing check valve and it has both metal seat and soft seat sealing options.
Our OEM Brand cast iron check valve is a perfect choice for many applications. It is designed to provide excellent performance under high pressure and temperature and is suitable for all kinds of liquids and gases. It is corrosion resistant and has an extended service life. Its special counterweight design ensures a smooth operation and a tight seal.
Customization:
Our Cast Iron Check Valve is widely used in many industries and has many advantages. Here are just a few:
- Brand Name: OEM
- Model Number: BS/DIN/ANSI/JIS
- Place of Origin: China
- Certification: ISO/CE
- Minimum Order Quantity: 1
- Price: USD1-100
- Packaging Details: with plywood cases
- Delivery Time: 30 days
- Payment Terms: T/T
- Supply Ability: 400 thousands pcs per year
- Temperature Range: -20℃-120℃
- Sealing: Metal Seat / Soft Seat
- Face to face: DIN3302-F6/BS5153/ANSI B16.10/JIS B2002
- Material: Cast Iron
- Design Standard: DIN3356/ BS5153/ BS1868/ ANSI/ JIS B2043
Our ci swing check valve, swing check valve, swing type check valve, and cast iron check valve are reliable and durable. We offer OEM services and have a minimum order quantity of 1. Our prices range from USD1-100, and our supply ability is 400 thousands pcs per year. Our temperature range is -20℃-120℃ and we have both metal seat and soft seat sealing options. Our face to face measurements are DIN3302-F6/BS5153/ANSI B16.10/JIS B2002 and our design standard is DIN3356/ BS5153/ BS1868/ ANSI/ JIS B2043. All of our products are ISO/CE certified and come with plywood cases for secure packaging.
We guarantee fast delivery within 30 days and accept payment through T/T. For more information about our Cast Iron Check Valve, please contact us.
Support and Services:
Technical support and service for Cast Iron Check Valve include:
- Technical assistance in selecting the best Cast Iron Check Valve for the application.
- Expert advice on proper installation and operation of the valve.
- Troubleshooting and maintenance to ensure optimal performance.
- Replacement parts for valves.
- On-site inspection and repair of valves.
- Training and education on proper operation and maintenance of the valves.
Packing and Shipping:
Packaging and Shipping for Cast Iron Check Valve:
- Packaging: High-quality plywood crates with steel bands for secure transportation.
- Shipping: We provide various shipping options based on customer requirements.
FAQ:
Q1: What is a Cast Iron Check Valve?
A: Cast Iron Check Valve is a one-way valve used to prevent backflow of liquid and gas. It is made of cast iron and is available in various sizes and styles, including BS/DIN/ANSI/JIS.
Q2: What is the brand of the Cast Iron Check Valve?
A: The brand of this Cast Iron Check Valve is OEM.
Q3: What is the minimum order quantity for Cast Iron Check Valve?
A: The minimum order quantity for Cast Iron Check Valve is 1.
Q4: What is the price for Cast Iron Check Valve?
A: The price for Cast Iron Check Valve ranges from USD1-100.
Q5: What is the certification for Cast Iron Check Valve?
A: The certification for Cast Iron Check Valve is ISO/CE.
